MAY 2019 PRODUCT OF THE MONTH

Ultrasonic Thickness Gauges!

THE MOST POPULAR THICKNESS GAUGES IN THE USA TODAY!

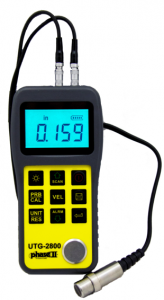

Model No. UTG-2800

State of the art, digital ultrasonic thickness gauge is packed with features typically found on high end models only. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The UTG-2800 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Specifications:

Model No. UTG-2800

  • Display type:4-digit LCD w/Back Light
  • Minimum display unit:0.001″/0.01mm (selectable)
  • Measuring Range:starts from 0.040″ to 12″ in steel w/standard probe
  • Accuracy:+/- (0.5% thickness + .001″)
  • Sound velocity range:3280-32805 ft/s (1000-9999m/s)
  • Operating temperature:32-122 degrees F
  • Frequency:5MHz
  • Update range:4Hz
  • Memory:20 Groups (100 files/group)
  • Output:USB
  • Mini-Printer:Optional
  • Power supply:3v AA alkaline batteries (2pc)
  • Battery life:Approx. 100 hours (w/backlight off)
  • Power consumption:Working current is less than 3V
  • Dimensions:5.90″ x 2.91″ x 1.30″ (150 x 74 x 33mm)
  • Weight:8.6oz (245g)

Learn More

Model No. UTG-2900

Reads thru Coatings!

Our new State of the art, digital ultrasonic thickness gauge is packed with features typically found on high end models only. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Thru Coating capabilities, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The UTG-2900 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.

Specifications:

Model No. UTG-2900

  • Display type:4-digit LCD w/Back Light
  • Minimum display unit:0.001″/0.01mm (selectable)
  • Measuring Range:Pulse-Echo: 0.025″ -23.0″ in steel; Echo-Echo: .118″ -3.50″ Can measure up to 90mm(3.5″) of steel while going through 900 micron (.035″) (35mils) of coating.
  • Accuracy:+/- (0.5% thickness + .001″)
  • Sound velocity range:3280-32805 ft/s (1000-9999m/s)
  • Scanning Feature:Yes, 16 measurements/second
  • Operating temperature:32-122 degrees F
  • Frequency:5MHz
  • Update range:4Hz
  • Memory:20 Groups (100 files/group)
  • Output:USB
  • Power supply:AA alkaline batteries (2pc)
  • Battery life:Approx. 100 hours (w/backlight off)
  • Power consumption:Working current is less than 3V
  • Dimensions:5.90″ x 2.91″ x 1.30″ (150 x 74 x 33mm)
  • Weight:8.6oz (245g)
