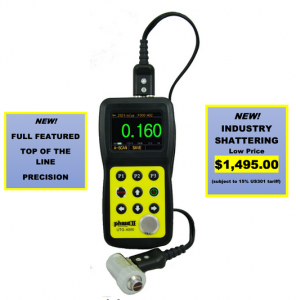

Ultrasonic Thickness Gauge w/ A & B Scan,Thru Coating Capability & Memory/Output/Software

Model No. UTG-4000

Ultrasonic Thickness Gauge

Utilizing color waveform LIVE A-scan and time based B-scan for absolute correctness, this new state of the art ultrasonic thickness gauge is packed with useful features allowing users to be confident of the displayed values on the most critical of applications. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scan mode with Min/Max viewing, GO/NO GO display, Adjustable Sound Velocity and Thru-Coating Capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials in critical situations that ordinary thickness gauges couldn’t do.


Model No. UTG-4000

  • Operating Principle: Ultrasonic Pulse/Echo and Echo to Echo method with dual element probe
  • Display type: 2.4” Color Screen
  • Resolution: 0.001”, .01” /0.01mm (Inch/Metric selectable)
  • Measuring Range: 0.02-20.0” Dependant upon probe & material
  • Repeatability: +/-.001” (+/-0.05mm)
  • Sound velocity range: 0.0197-0.3937in/us (500-9999m/s)
  • Measuring Error: 0.001”(up to 0.984”); 0.007”(up to 3.03”); 0.019”( 4” and above)
  • Display Modes: Digital Thickness Readout, A-scan or B-scan, Min/Max Capture, Diff-Value / Reduction
  • V-Path Correction: Automatic
  • Update Rate: Selectable: 4Hz, 8Hz, 16Hz
  • Refresh rate: 4/second
  • Alarm Settings: Min/Max Alarm; Dynamic waveform color change on alarm
  • Operating temperature: 14-122ºF (-10ºC – +50ºC)
  • Auto Shut-Off: After 5 minutes
  • Power supply: 3v AA alkaline batteries (2pc)
  • Operating Time: Approx. 36 hours
  • Dimensions: 6.02” x 2.99” x 1.45” (153 x 76 x 37mm)
  • Weight: 9.9oz (280g)

Learn More

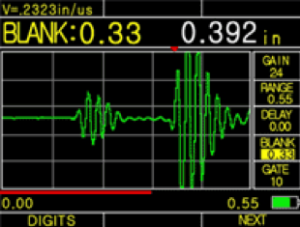

  • UTG-4000 Ultrasonic Thickness Gauge -Blanking

  • UTG-4000 Ultrasonic Thickness Gauge -Adjustable Gate

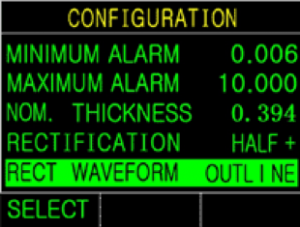

  • UTG-4000 Ultrasonic Thickness Gauge -Configuration Mode
