FEBRUARY 2018 PRODUCT OF THE MONTH

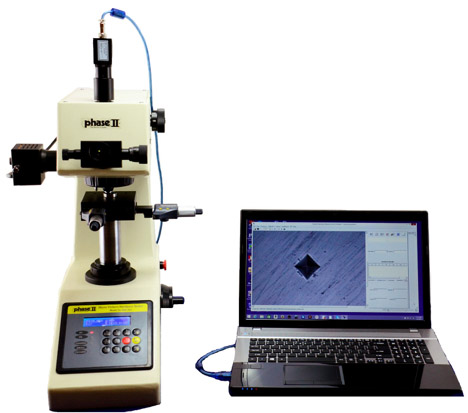

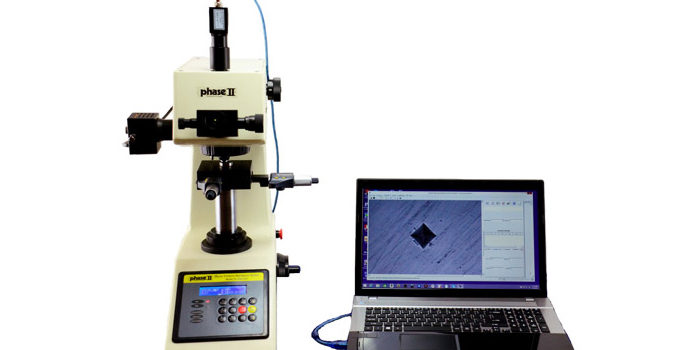

Micro Vickers Hardness Tester

USB Digi Cam and Software

Starting at $7595

This Micro Vickers hardness tester is a precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments

Technical Features:

  • Test Forces: 0.098N(10g), 0.246N(25g), 0.49N(50g), 0.98N(100g), 1.96N(200g), 2.94N(300g), 4.90N(500g), 9.80N(1000g)
  • Max Height of the Specimen: 70mm
  • Max Distance from the Indenter Center to the Instrument Panel: 95mm
  • Lens/indenters with:With Hand Turret
  • Carriage Control: Automatic(loading /holding-up of the load/unloading)
  • Amplification of the microscope: 100×,400×
  • Dwell Time of the Test Force:(5-60)S
  • Min.Graduation Value of the Testing Drum Wheel: 0.25um
  • Dimension of the XY Table: 100×100mm
  • Movement Field of the XY Table: 25×25mm
  • Light source/Power Supply: 110/220V,60/50Hz/Cold Light Source
  • Weight/Gross Weight: 41.5kg Net Weight: 35kg
  • Package Dimensions: 425×245×490mm

Main Accessories for Phase II Vickers Hardness Tester Model 900-390/391:

  • Base Machine w/ Auto-Turret
  • X-Y Stage w/ Digital Micrometers
  • Mini Thin Part Holding Fixture
  • Mini Drill Chuck Fixture
  • Mini Vise fixture
  • Video Cam w/Adapter
  • Measurement Software
  • USB Cable

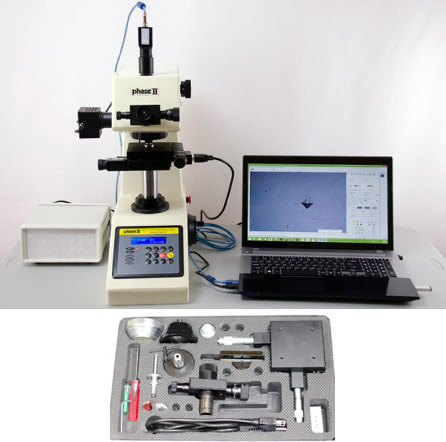

900-391E digital Micro Vickers hardness tester with digital video cam, adaptor, auto turret control, x-y axis controller, servo driven auto X-Y axis table & auto me


Video Cam, Adaptor, Software Kit

  • Model No. 900-390A Vickers Hardness Tester
  • Includes Video cam, adapter and manual measurement software
  • Model No. 900-390B Vickers Hardness Tester
  • Includes Video cam, adapter and Auto-Measurement software
  • Model No. 900-391A Vickers Hardness Tester
  • Includes Video cam, adapter and manual measurement softwar
  • Model No. 900-391B Vickers Hardness Tester
  • Includes Video cam, adapter and Auto-Measurement software
  • Model No. 900-391C Vickers Hardness Tester
  • Includes Video cam, adapter and Turret control w/manual measurement software
  • Model No. 900-391D Vickers Hardness Tester
  • Includes Video cam, adapter and Turret control w/ Auto-Measurement software
  • Model No. 900-391E Vickers Hardness Tester
  • Includes Video cam, adapter, Automatic X & Y axis control, and auto Turret control w/ Auto-Measurement software
  • Packages A, B & C can be upgraded at any time. Contact Phase II for further information Packages C&D only work with Phase II brand and similar machines

Our advanced line of Micro Vickers Series hardness testers are state-of-the-art, precise testing systems suitable for hardness analysis of metallic specimens in metallography laboratories or production environments.

The Phase II micro-vickers hardness testers are versatile and user-friendly systems, designed for the accurate hardness testing of small precision parts, thin materials, coatings, wires and case depth determinations. The Phase II 900-391 Series micro-vickers hardness testers include Auto-Turrett, Video Cam, Adapter, USB Output Cable and a choice of 4-variants of Measurement software giving you the capabilities of machines that cost thousands more. The 900-391 Micro Vickers hardness tester covers the load range from 10g to 1kg.

Conforming to ASTM E-384/92 vickers hardness testers standards, the 900-391 series micro vickers hardness testers will offer unmatched repeatability. This micro Vickers hardness tester can also measure Knoop hardness after installing an optional knoop indentor. A perfect rugged performer suited for any environment, the Phase II vickers hardness testers are offered with a 5 year warranty and free lifetime technical support.
